Precast concrete production has become a cornerstone of modern construction, providing efficiency, quality, and scalability for building projects. In such operations, the handling and transportation of heavy precast components require specialized lifting equipment capable of safely managing substantial loads. Among these, gantry cranes are widely used due to their flexibility, high load capacity, and ability to operate over long spans. Understanding the capacity requirements of gantry cranes in precast concrete production is crucial to ensure operational efficiency, safety, and cost-effectiveness.
Understanding Gantry Crane Capacity
Gantry crane capacity refers to the maximum load a crane can safely lift and move. This rating is determined based on structural design, hoist strength, stability, and safety factors. In precast concrete production, load capacities can vary widely depending on the type, size, and weight of the components being handled. Typical precast items include concrete panels, beams, columns, hollow-core slabs, and bridge segments. The weights of these components can range from a few tons to over 50 tons for large structural elements, necessitating precise selection of crane capacity.
The crane’s rated capacity is not only a function of the hoist but also involves the structural integrity of the gantry frame, the strength of the supporting rails or tracks, and the stability under dynamic lifting conditions. Choosing a gantry crane for sale with insufficient capacity can lead to operational delays, equipment damage, and safety hazards, while an oversized crane can result in unnecessary costs and underutilization.
Factors Affecting Gantry Crane Capacity in Precast Production
Several factors must be considered when determining the appropriate gantry crane capacity for a precast concrete facility:
1. Weight of Precast Components
The most direct factor is the weight of the heaviest component handled in the production process. Precast concrete beams for bridges or industrial buildings can exceed 30-40 tons per piece, while smaller wall panels may weigh only 5-10 tons. The crane must be rated to lift the heaviest expected load safely, often including a safety margin of 10-20% above the maximum load.
2. Load Distribution
Precast components often have irregular shapes or long spans, which can result in uneven weight distribution. Gantry cranes must be designed to handle off-center loads without compromising structural stability. In some cases, multiple hoists or synchronized lifting systems are used to distribute the load evenly across the crane’s span.
3. Lifting Height and Span
The height to which precast components must be lifted and the span of the crane affect the structural requirements and capacity. Higher lifts increase the potential for dynamic forces, while longer spans require stronger girders and reinforced supporting structures to maintain stability. Engineers must calculate the combined effect of lifting height, span, and load weight to select the appropriate crane capacity.
4. Operational Speed and Cycle Time
High-capacity gantry cranes often operate in repetitive cycles, moving components from the casting area to storage or transport areas. Faster lifting speeds and frequent operations generate dynamic loads that exceed the static weight of the precast item. Accounting for these dynamic factors is essential in determining the crane’s effective capacity.
5. Safety Factors and Compliance
Industrial standards and safety regulations require that gantry cranes include built-in safety factors in their design. Organizations such as OSHA, CMAA, and regional standards define how to calculate rated capacities, factoring in potential overload, material fatigue, and emergency conditions. Choosing a crane with sufficient safety margins ensures compliance and protects personnel and equipment.
Types of Gantry Cranes Used in Precast Concrete Production
Several types of gantry cranes are suitable for precast concrete production, each with unique capacity considerations:
1. Single Girder Gantry Cranes

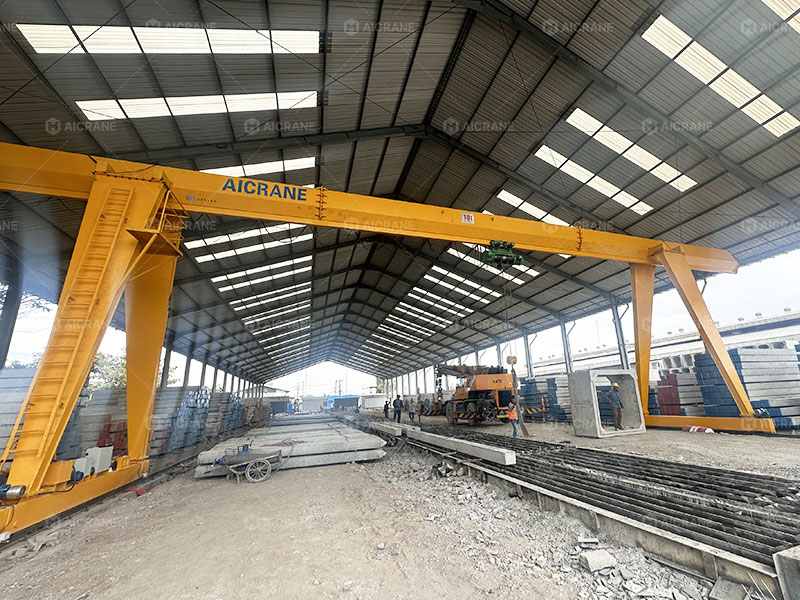

Ideal for lighter loads (typically 5-20 tons), single girder gantry cranes are cost-effective and suitable for smaller precast panels or columns. They offer flexibility in indoor workshops and require less structural reinforcement, but they are limited in span and lifting height compared to double girder designs.
2. Double Girder Gantry Cranes

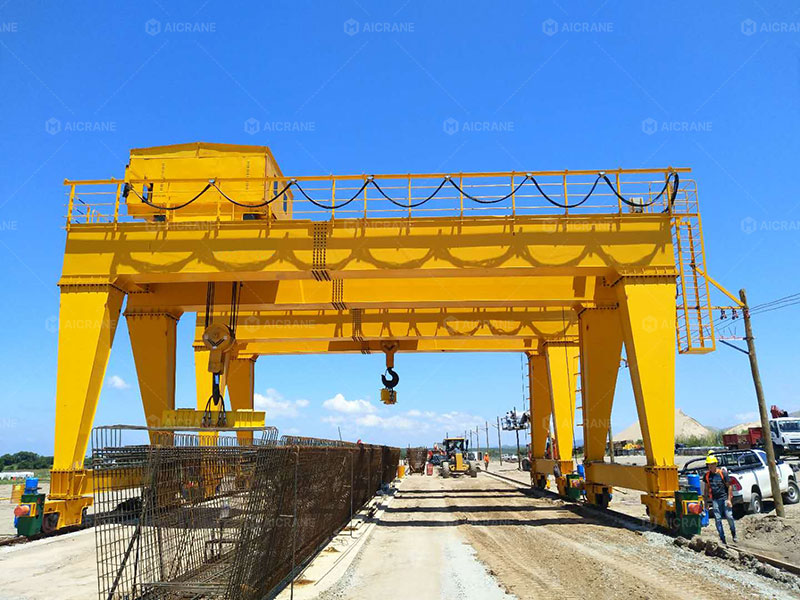

Used for medium to heavy loads (20-100 tons), double girder gantry cranes provide greater strength, stability, and lifting height. They are commonly employed for large precast beams, bridge segments, or multi-story structural elements. Double girder designs also allow for higher hoist speeds, increasing operational efficiency.
3. Heavy-Duty Gantry Cranes
For extremely heavy or oversized precast components (100 tons and above), custom heavy duty gantry cranes are necessary. These cranes feature reinforced girders, high-capacity hoists, and enhanced structural stability. They are often used in large precast yards producing bridge girders, offshore concrete structures, or industrial building frames.
4. Rubber Tyred Gantry Cranes (RTGs) and Mobile Gantries
Some precast facilities employ mobile gantry cranes for flexibility in moving loads across open yards. While these cranes offer mobility, their capacity may be limited compared to fixed gantries. Careful assessment of component weight and operational conditions is essential to ensure safety.
Determining the Right Capacity
Selecting the proper gantry crane capacity for a precast facility involves a detailed analysis of production needs. Key steps include:
-
Inventory Analysis: Identify the heaviest and largest components produced in the facility.
-
Load Calculations: Include both static and dynamic loads, factoring in uneven weight distribution and potential swinging forces.
-
Operational Assessment: Consider lifting height, span, cycle frequency, and speed.
-
Safety Factor Application: Add appropriate safety margins according to industrial standards.
-
Future-Proofing: Consider potential increases in production scale or heavier components in the future.
Engaging with experienced gantry crane manufacturers can provide customized solutions that optimize capacity, span, lifting height, and hoist type to match the facility’s needs.
Importance of Capacity in Efficiency and Safety
Gantry crane capacity directly impacts production efficiency. A crane with insufficient capacity will slow operations, require multiple lifts for a single component, or necessitate additional equipment. Conversely, a properly rated crane ensures smooth material handling, reduces cycle time, and minimizes risk of accidents.
From a safety perspective, exceeding crane capacity can cause structural failure, tipping, or uncontrolled load swinging. Implementing load monitoring systems and operator training programs ensures that cranes are used within their rated capacities, protecting both personnel and valuable precast products.
Conclusion
In precast concrete production, understanding and selecting the correct gantry crane capacity is critical for operational efficiency, safety, and long-term cost-effectiveness. By considering component weights, load distribution, lifting heights, operational dynamics, and safety standards, precast facilities can choose cranes that meet their immediate needs while providing flexibility for future expansion.
Whether it’s a single girder crane for small panels, a double girder gantry crane for heavy beams, or a custom heavy-duty gantry for oversized bridge segments, precise capacity planning ensures that gantry cranes remain a reliable backbone of precast concrete production. Investing in the right crane capacity not only improves workflow efficiency but also enhances workplace safety and supports high-quality construction output.
